Overture DH
A high performance range of zinc and aluminium door handles suited with Overture E window handles. Available in sprung lever/lever and lever/pad variations.
Features & Benefits
- Tested to over 100,000 cycles
- All finishes tested in excess of 240 hours salt spray testing

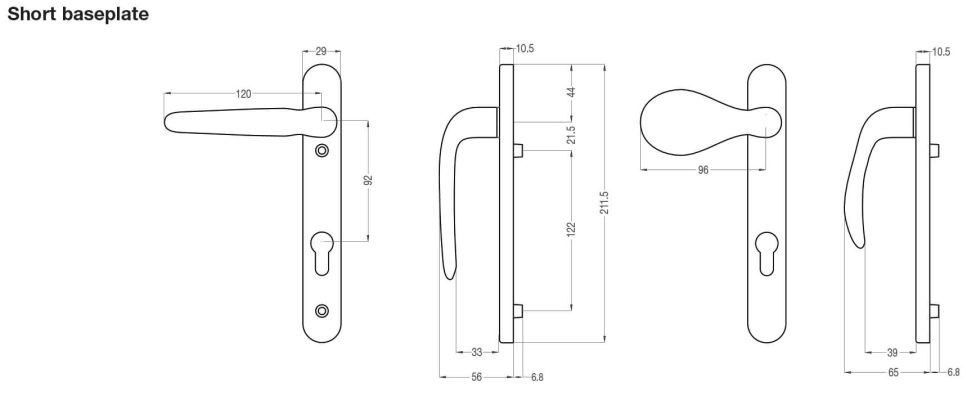

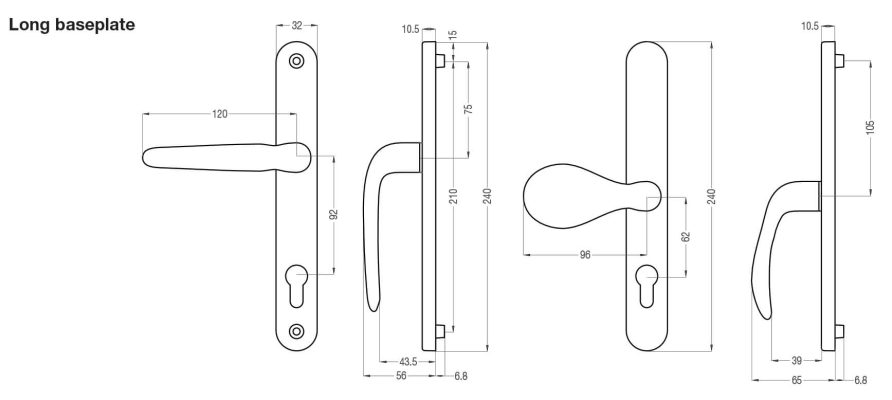

- Short (211.5mm) and long (240mm) baseplate options
- Sprung handles
- Supplied with two spindle lengths and two screw lengths as standard
- Each pair individually packaged
- Colour coordinated screw heads
Technical Information
Product Codes and Specific features
| Product | Door Width (mm) | Product Code (Zinc DH-Z) |
Product Code (Aluminium DH-A) |
| Overture DH-Z or DH-A 210 L1/L1 (Door Handle Short Baseplate Lever1/Lever1) | 40-70 | TN8100 | TN8104 |
| Overture DH-Z or DH-A 210 L1/P1 (Door Handle Short Baseplate Lever1/Pad1*) | 40-70 | TN8101 | TN8105 |
| Overture DH-Z or DH-A 240 L1/L1 (Door Handle Long Baseplate Lever1/Lever1) | 40-70 | TN8102 | TN8106 |
| Overture DH-Z or DH-A 240 L1/P1 (Door Handle Long Baseplate Lever1/Pad1**) | 40-70 | TN8103 | TN8107 |
* Split Spindle – Door lock specific spindle may be required
** Offset Spindle
NB: Reduction of spindle and/or screws may be required to achieve the full door width range
Die cast aluminium
Die cast zinc
Salt spray tested to 480 hours (BS EN 1670 Grade 5 –
Exceptionally High Corrosion Resistance) – Polished chrome, PVD gold and powder painted finishes only (Satin Chrome – BS EN 1670 Grade 4 – Very High Corrosion Resistance)
Cycle tested to 100,000 cycles as per EN1906: 2002
NOTE: Not all products are available in all finishes listed below. Please contact us for availability. Suffix product code with:
-020 (White Paint), -102 (PVD Gold), -812 (Polished Chrome), -825 (Satin Chrome), -009 (Dark Chrome)
